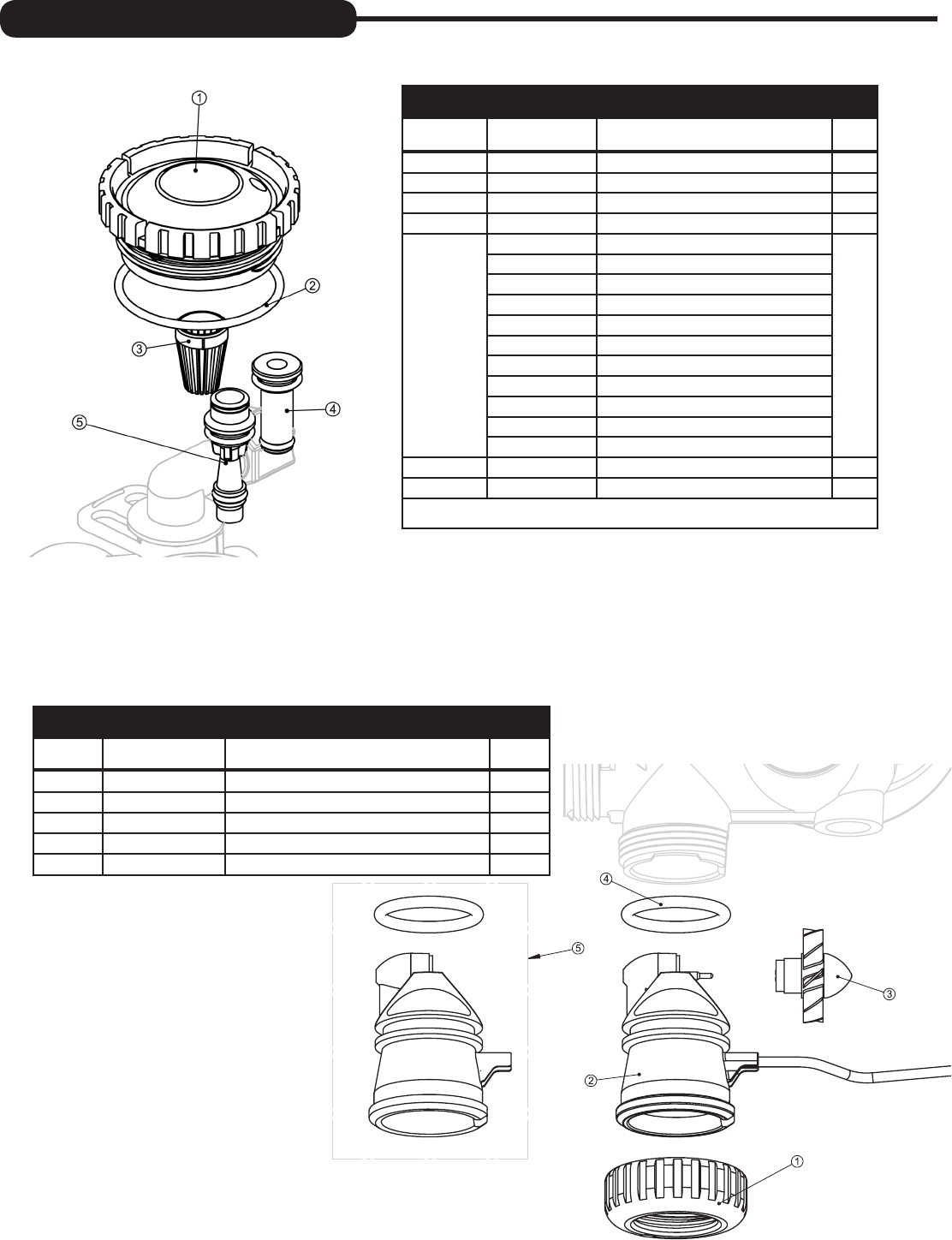

INJECTOR ASSEMBLIES

Item No. Part No. Description Qty.

CV3176 Injector cap 1

CV3152 O-ring 135 1

CV3177-01 Injector screen 1

CV3010-1Z Injector assembly plug 1

CV3010-1A A injector assembly, black

CV3010-1B B injector assembly, brown

CV3010-1C C injector assembly, violet

CV3010-1D D injector assembly, red

CV3010-1E E injector assembly, white

CV3010-1F F injector assembly, blue

CV3010-1G G injector assembly, yellow

CV3010-1H H injector assembly, green

CV3010-1I I injector assembly, orange

CV3010-1J J injector assembly, light blue

CV3010-1K K injector assembly, light green

not shown CV3170 O-ring 011, lower *

not shown CV3171 O-ring 013, upper *

* The injector plug and the injector each use one lower and one upper o-ring

REPLACEMENT PARTS:

WATER METER & METER PLUG

Item No. Part No. Description Qty.

1 CV3151 Nut, 1” QC 1

2 CV3003 Meter assembly, includes items 3 & 4 1

3 CV3118-01 Turbine assembly 1

4 CV3105 O-ring 215 1

5 CV3003-01 Meter plug assembly 1
